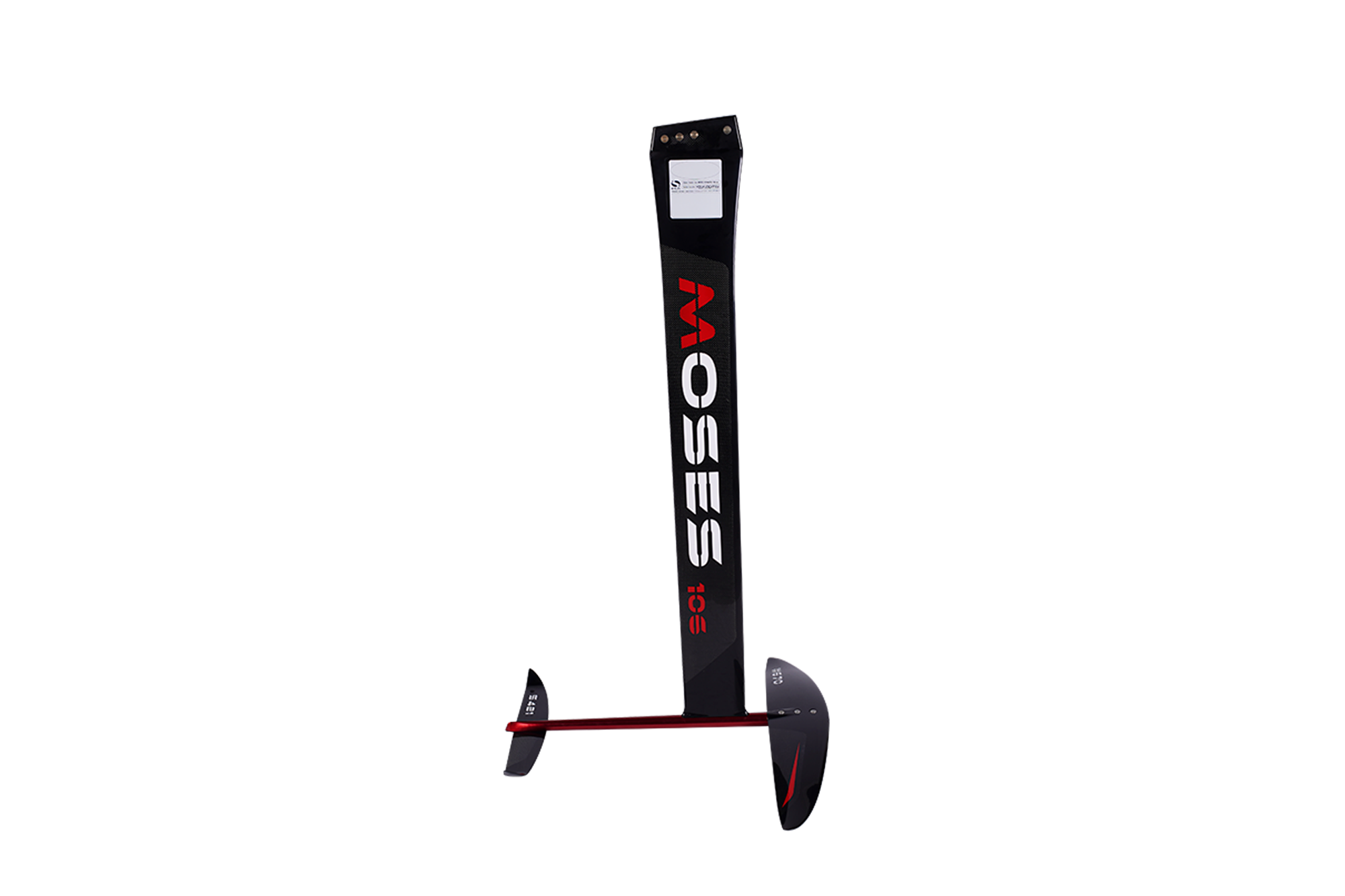

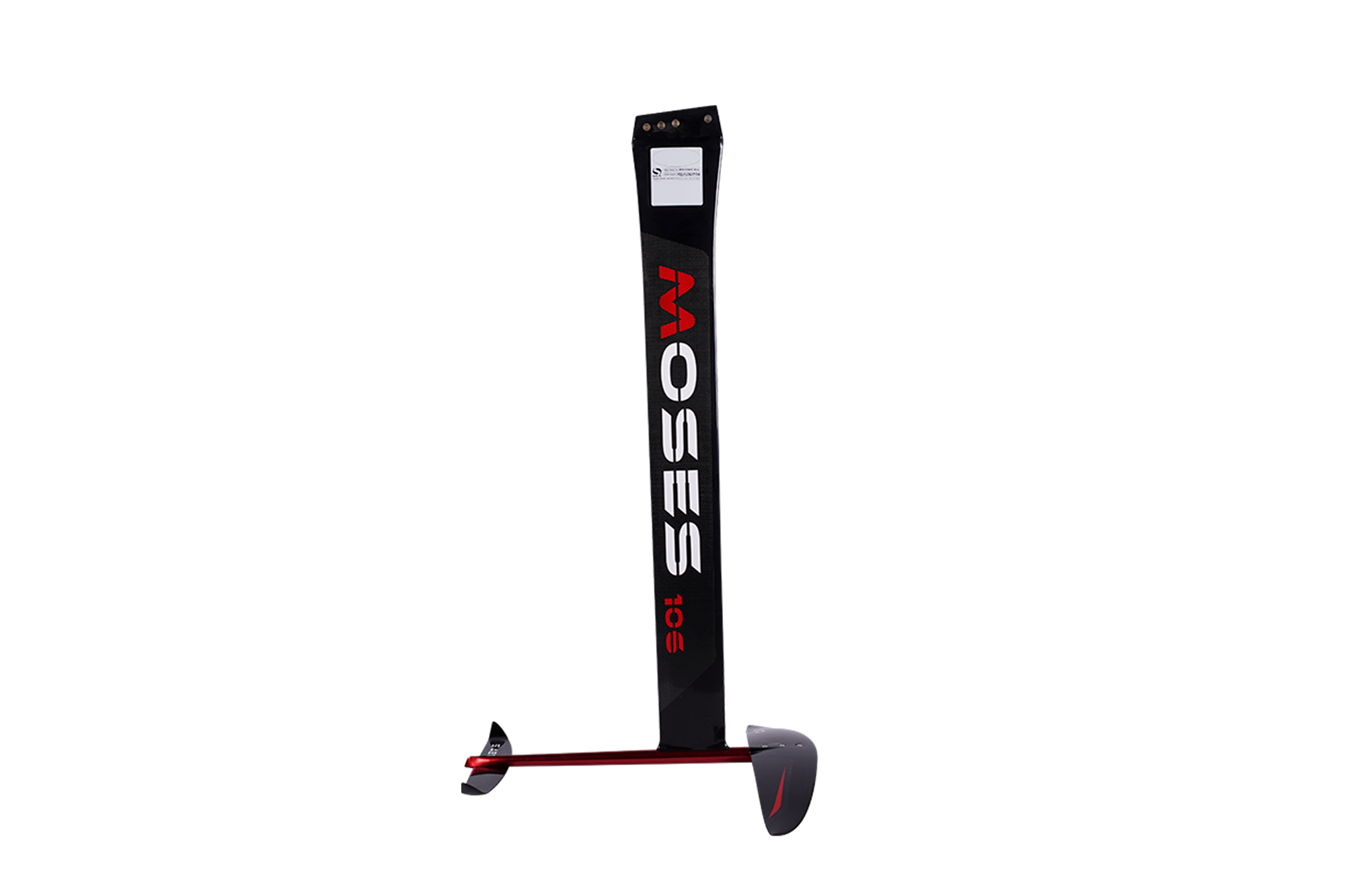

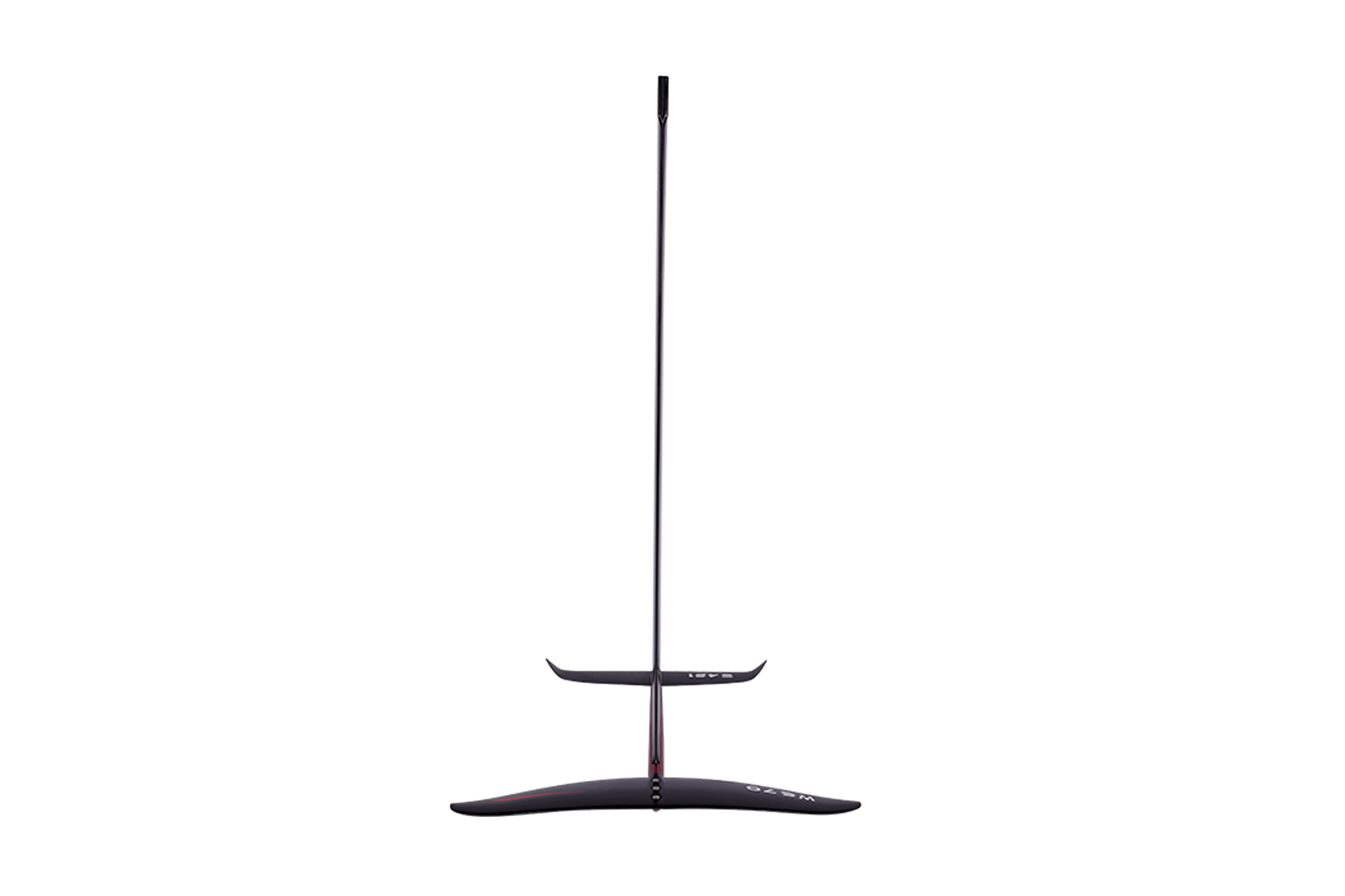

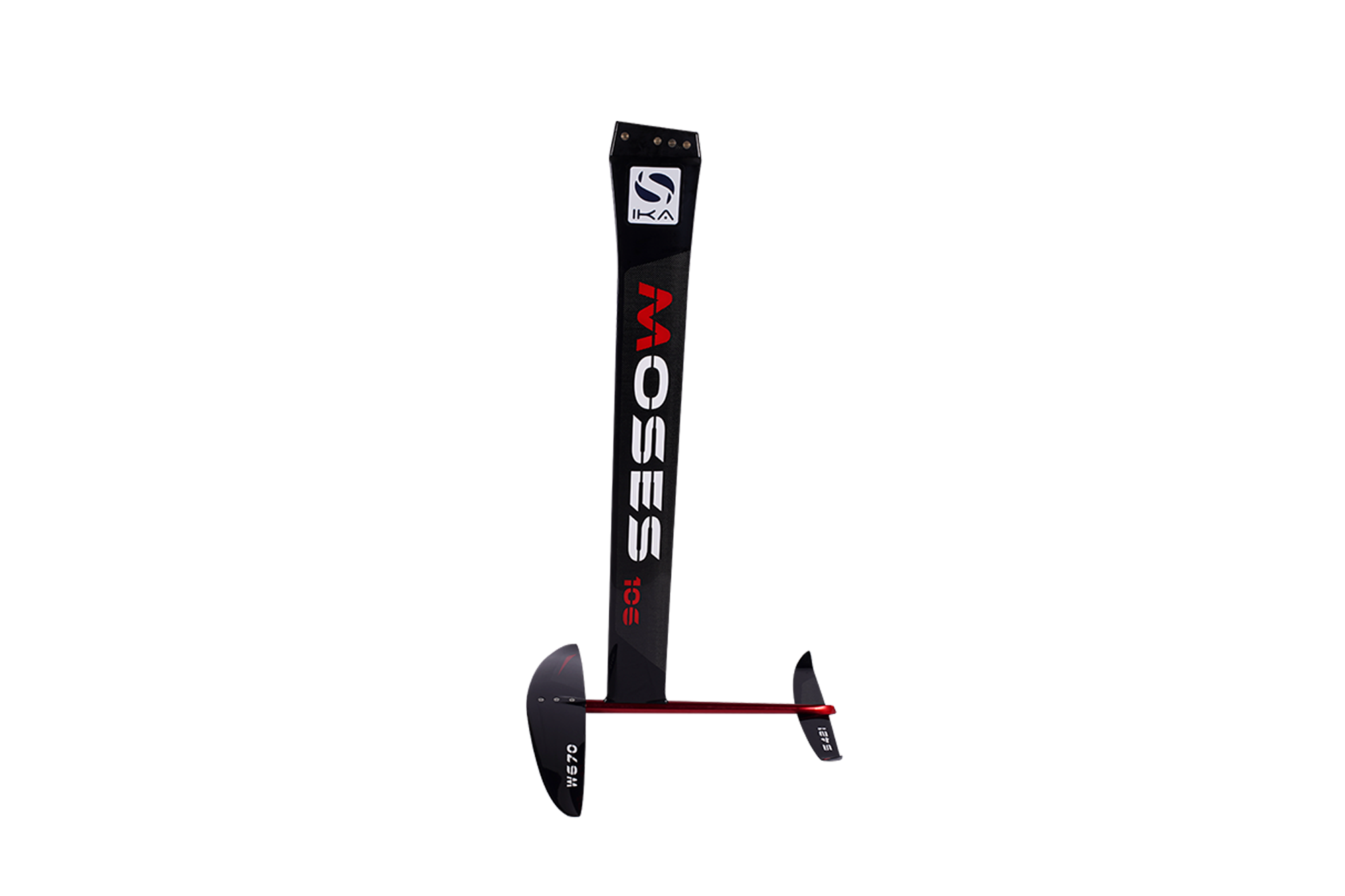

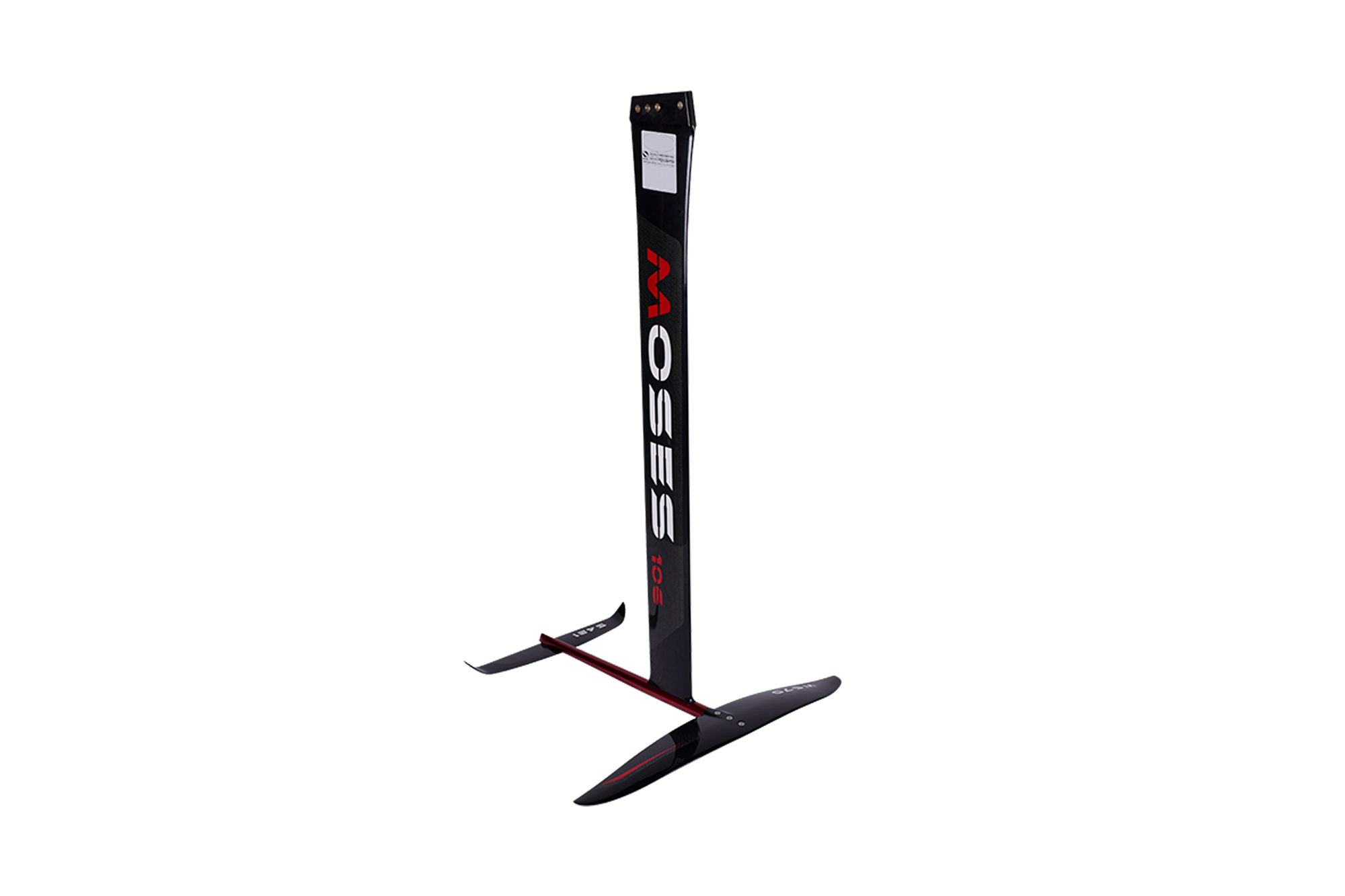

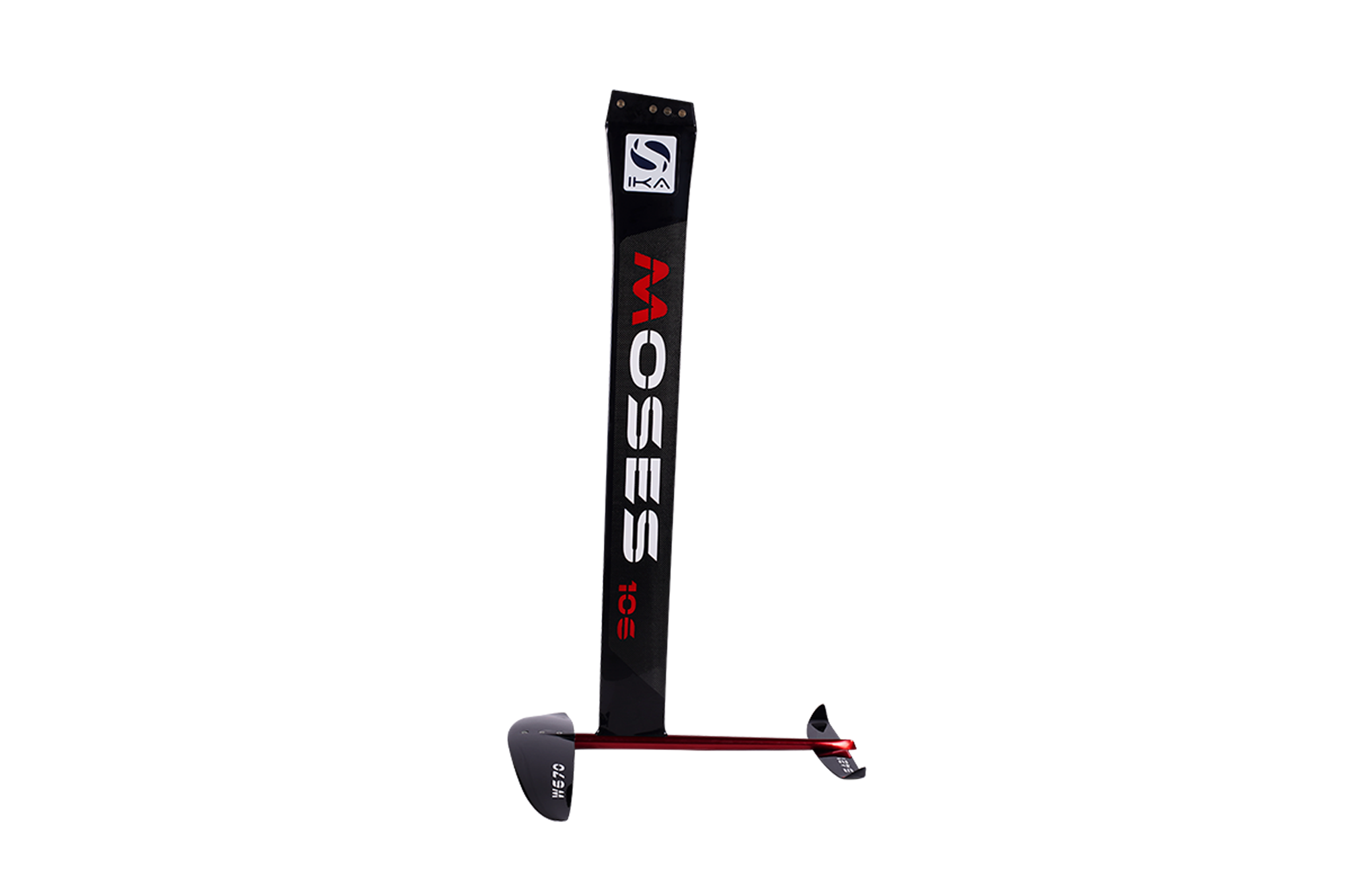

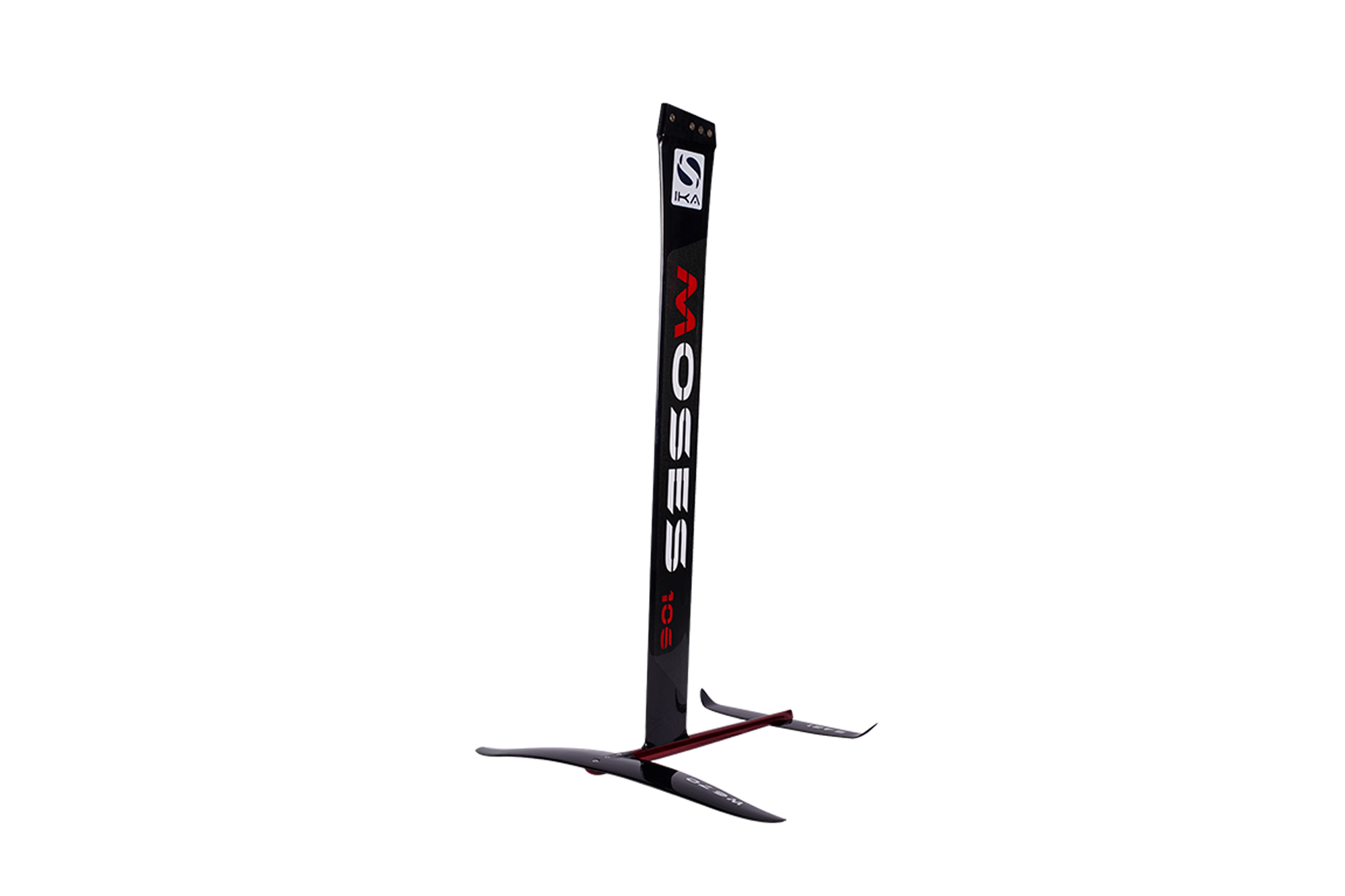

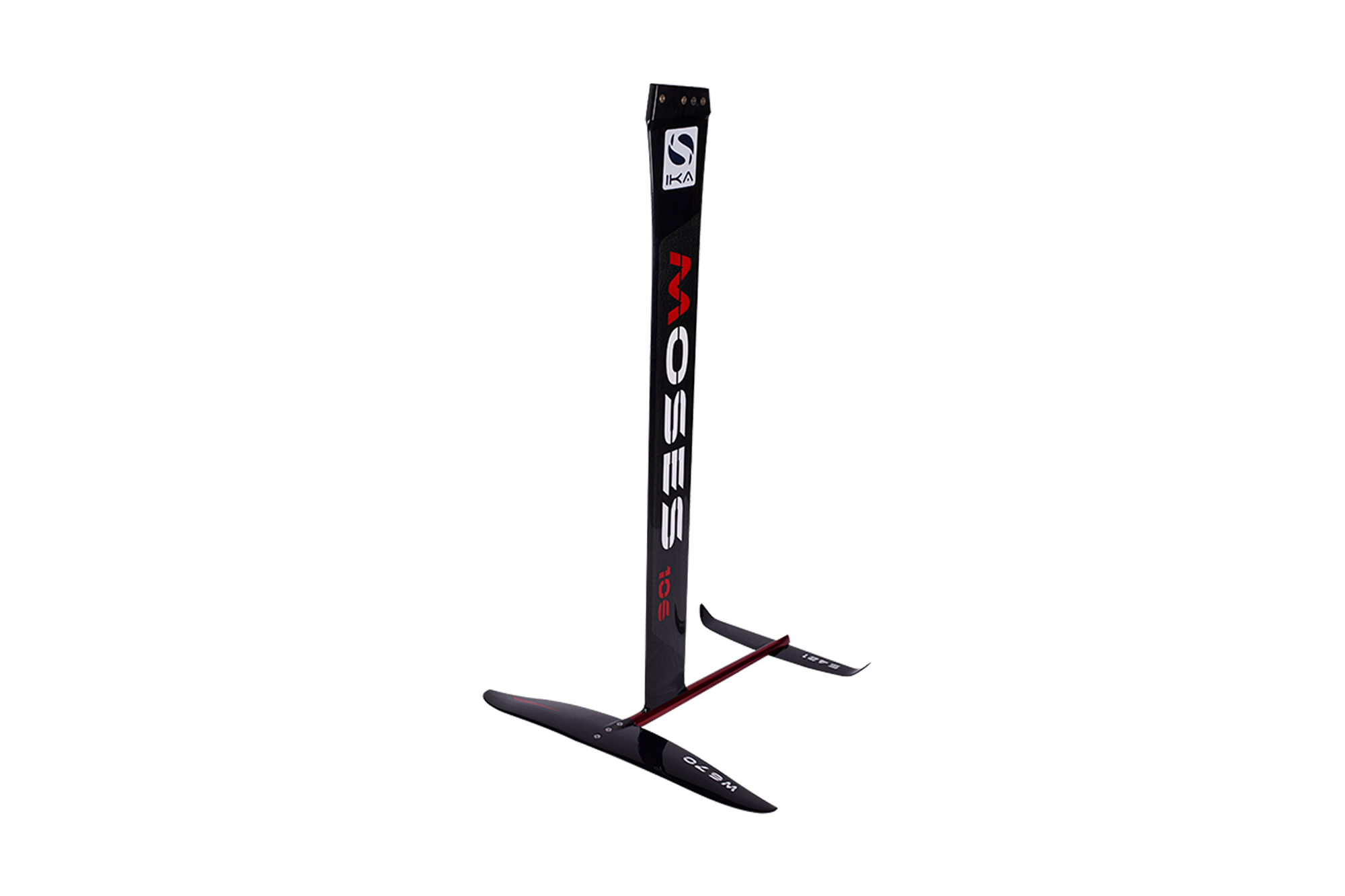

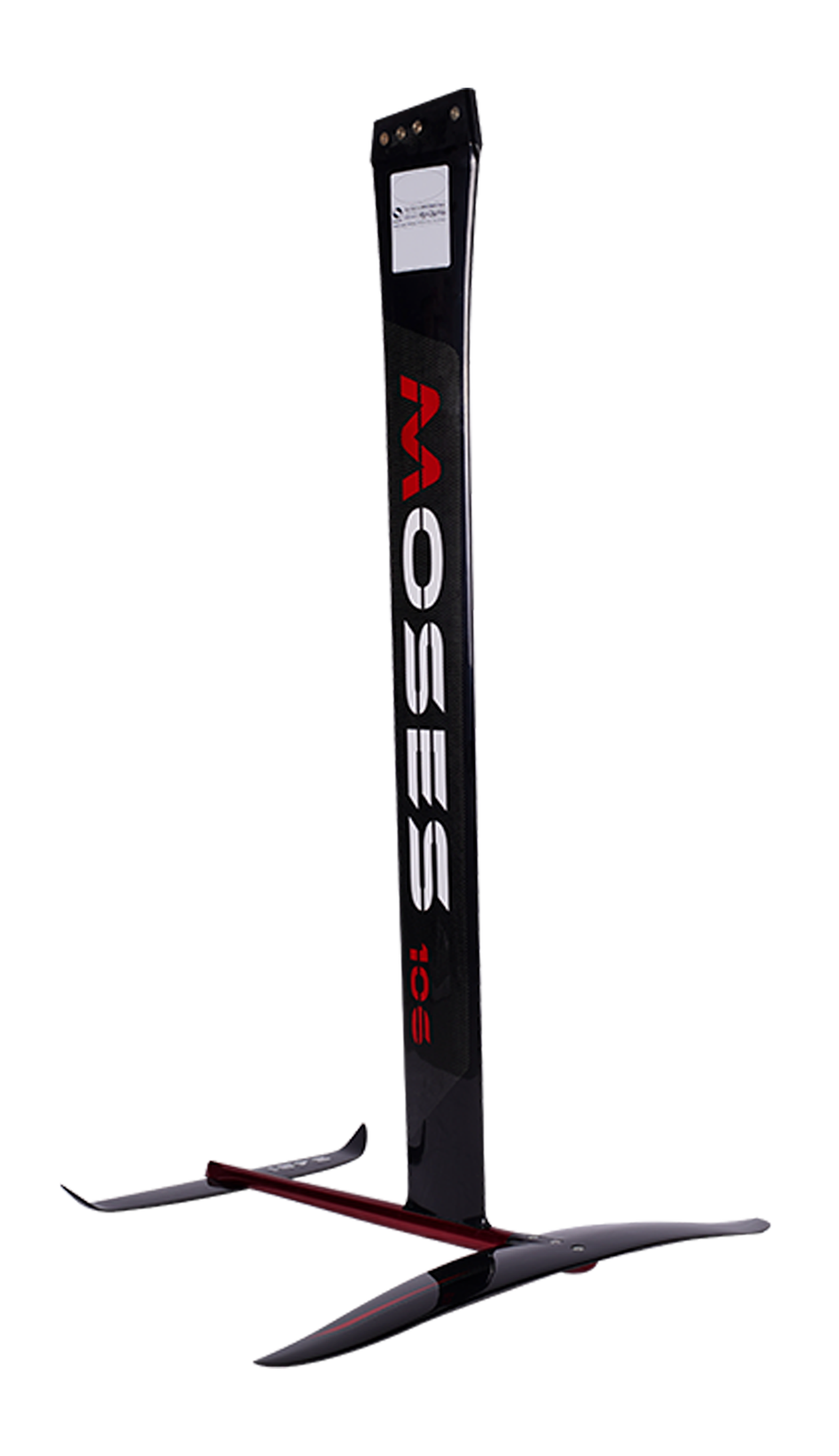

Kit 106 - 670 - 421 Carbon Kite Race

Kit 106 - 670 - 421 Carbon Kite Race K106670


The pinnacle of Moses Hydrofoil Racing Division: The K106-670 is specifically designed and built to be the highest performing kite race foil.

The 421 stabilizer is designed for those riders who wants the max stability and confidence while riding full speed downwind.

Every part of this foil is designed to reduce drag and produce the best possible hydrodynamic performance. Each detail is precisely tuned to maximise the highest ratio speed/angle while avoiding ventilation. Providing superior stability and control even at the highest speed. Our use of high modulus and high resistance carbon is computer optimised for performance to have the stiffest and lowest torsion foil.

Every single component of the kit goes through two different quality and measurement checks, ensuring that each foil delivers identical performance. It's the first IKA registered 2020/2024.

Moses racing foils are made of high modulus carbon to ensure the highest rigidity and torsion resistance.

The technical choice to use a high modulus carbon is due to its characteristic of having a minimum elongation.

Micro fractures on the mast caused by accidental collisions or by freestyle use of your race specific foil can cause the mast to break suddenly.

For this reason, we recommend to check the mast carefully after a collision and avoid to jump with your Moses race foil


Low stock



Kit 106 - 670 - 421 Carbon Kite Race specs
LIFT SPEED 7/10
CONTROL 9/10
AGILITY 8/10
UPWIND 9/10
TOPSPEED 10/10
characteristics
Best For
Performance
Suggested For
Racing
Water Surface
Choppy - Glassy
Wind
Light - Medium - High
Level
Expert
Weight
< 65 - 75 - 85 - 95 > Kg

Pack content
1 x M106 Carbon Tuttle Mast 106
1 x W670 Carbon Front wing 670 kite race
1 x S421 Carbon stabilizer 421
1 x FKR604 Fuselage 604 kite race
3 x Flat Head Screws Torx M6x16
4 x Flat Head Screws Torx M6x20
Instruction

DIMENSIONS & ADVANCE SPECS
Mast Height
1060 mm

Front Wing Span
670 mm

Front Wing Root Chord
115 mm

Front Wing Aspect Ratio
7.8

Front Wing Surface
570 cm2

Stabilizer Span
414 mm

Stabilizer Root Chord
61,70 mm

Stabilizer Aspect Ratio
7.76

Stabilizer Surface
221 cm2

Mast Weight
1.87 kg

Board Connection
Tuttle

Fuselage Length
603,6 mm

Fuselage Weight
600 gr
