Kit 82 - 873 Carbon Onda

Kit 82 - 873 Carbon Onda S82873


The 873 has tons of lift. The high effciency and its large outline will permit you to surf knee high waves or pump in flat water.

The same DNA as the 633, its adopts the inverted gull wing shape and concave bottom. The large wingtips will squeeze the water while pumping and give you that extra drive to generate speed through your carves.

Ideal for small waves and using a windwing in light to medium wind.


Low stock



Kit 82 - 873 Carbon Onda specs
LIFT SPEED 10/10
CONTROL 9/10
AGILITY 8/10
TOPSPEED 6/10
characteristics
Wave Shape
Small - Medium
Waves Priod
Slow
Best For
Surfing - Pumping - Downwind
Suggested For
WaveRiding
Level
Intermediate - Expert
Weight
85 - 95 > Kg

Pack content
1 x M82 - Carbon Plate Mast 82
1 x W873 - Carbon Front Wing 873
1 x S483 - Carbon Stabilizer 483
1 x FS710 - Fuselage 710
2 x Socket Head Cap Screw M6x25 and washers
1 x Flat Head Screw Torx M6x16
1 x Flat Head Screw Torx M6x20
2 x Flat Head Screw Torx M6x50
1 x Flat Head Screw Torx M6x45
Torx, hex tip, grease
Instructions

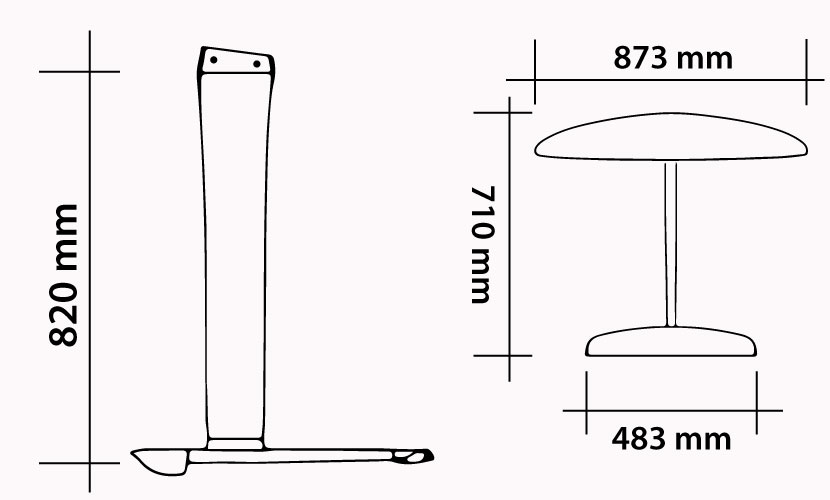

DIMENSIONS & ADVANCE SPECS
Base Plate Joint
90 x 165 mm

Mast Height
820 mm

Front Wing
873

Front Wing Span
873 mm

Front Wing Root Chord
304 mm

Front Wing Aspect Ratio
3.63

Front Wing Surface
2100 cm2

Stabilizer
483

Stabilizer Span
483 mm

Stabilizer Root Chord
85 mm

Stabilizer Aspect Ratio
7.6

Stabilizer Surface
316 cm2
