Kit 91 - 695 Carbon Kite Wave

Kit 91 - 695 Carbon Kite Wave K91695


Fast, smooth acceleration, predictive and with a great manoeuvrability that makes this profile perfect for wave riding.

We kept all the good characteristics of the 550 wing, at the same time we lowered the lift speed and added stability. An advanced wing full of speed and manoeuvrability. The 695 is the choice for all riders aiming to do high jumps and manoeuvres at high speed.

It comes stock with the 421 but it can be used with the 325 stabilizer for a more skatey feeling in the waves, or as a freestyle machine with the 330 stabilzer.


Low stock



Kit 91 - 695 Carbon Kite Wave specs
LIFT SPEED 8/10
CONTROL 8/10
AGILITY 9/10
UPWIND 8/10
TOPSPEED 8/10
characteristics
Best For
Performance
Suggested For
Freeride
Water Surface
Choppy - Glassy
Wind
Light - Medium
Level
Intermediate
Weight
75 - 85 - 95 > Kg

Pack content
1 x M91 - Carbon Plate Mast 91
1 x W695 - Carbon Front Wing 695
1 x S421 - Carbon Stabilizer 421
1 x FK647 - Fuselage 647
2 x Socket Head Cap Screw M6x20 and washers
2 x Flat Head Screw Torx M6x16
2 x Flat Head Screw Torx M6x20
1 x Flat Head Screw Torx M6x25
Torx, hex tip, grease
Instructions

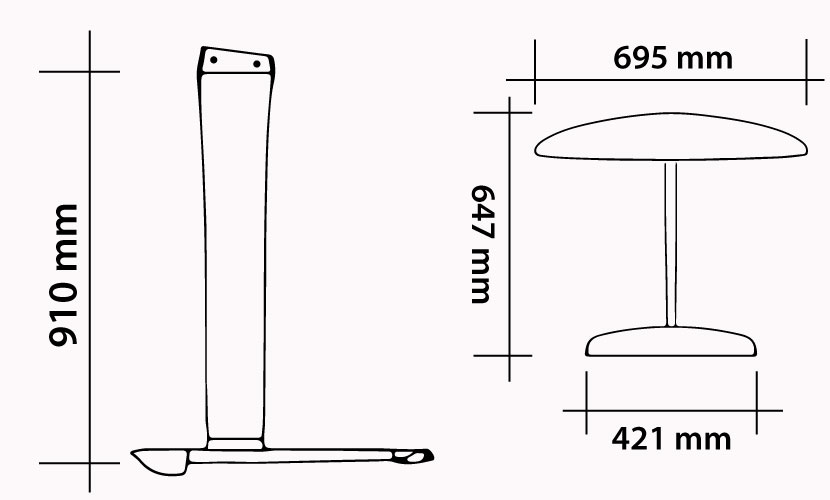

DIMENSIONS & ADVANCE SPECS
Base Plate Joint
90x165 mm

Mast Height
910 mm

Front Wing
695

Front Wing Span
695 mm

Front Wing Root Chord
131 mm

Front Wing Aspect Ratio
6.3

Front Wing Surface
770 cm2

Stabilizer
421

Stabilizer Span
414 mm

Stabilizer Root Chord
61,70 mm

Stabilizer Aspect Ratio
7.76

Stabilizer Surface
221 cm2
