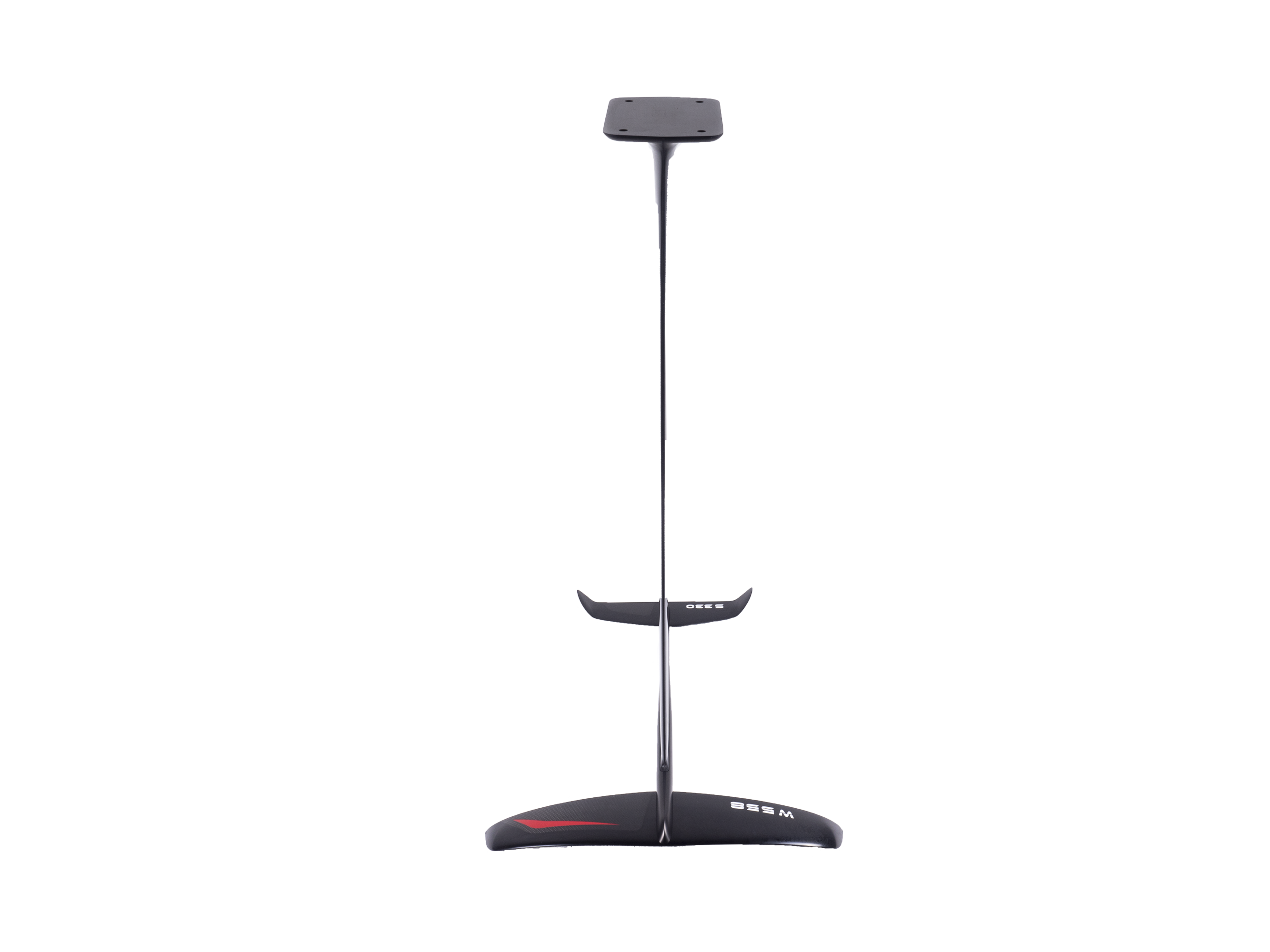

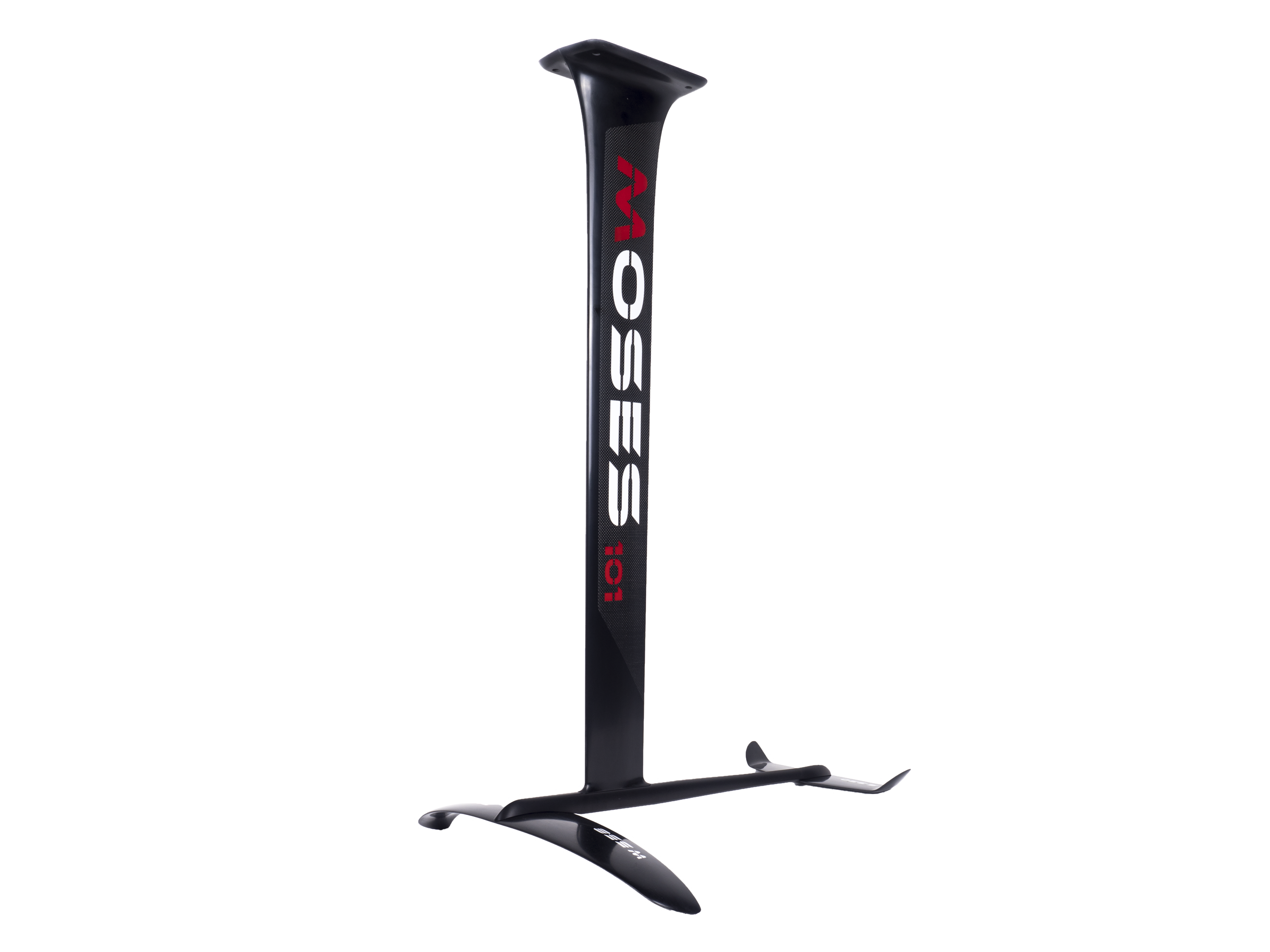

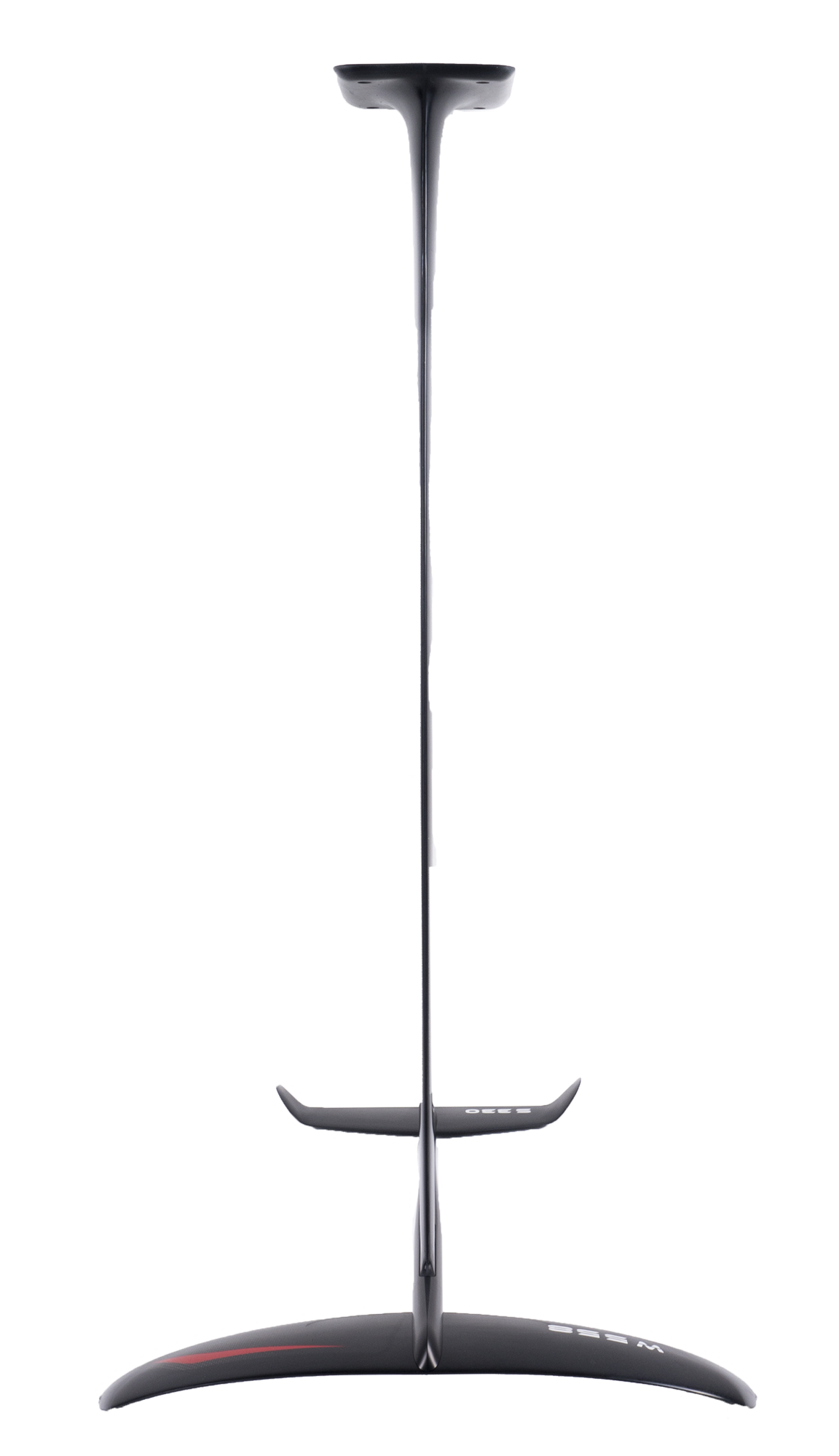

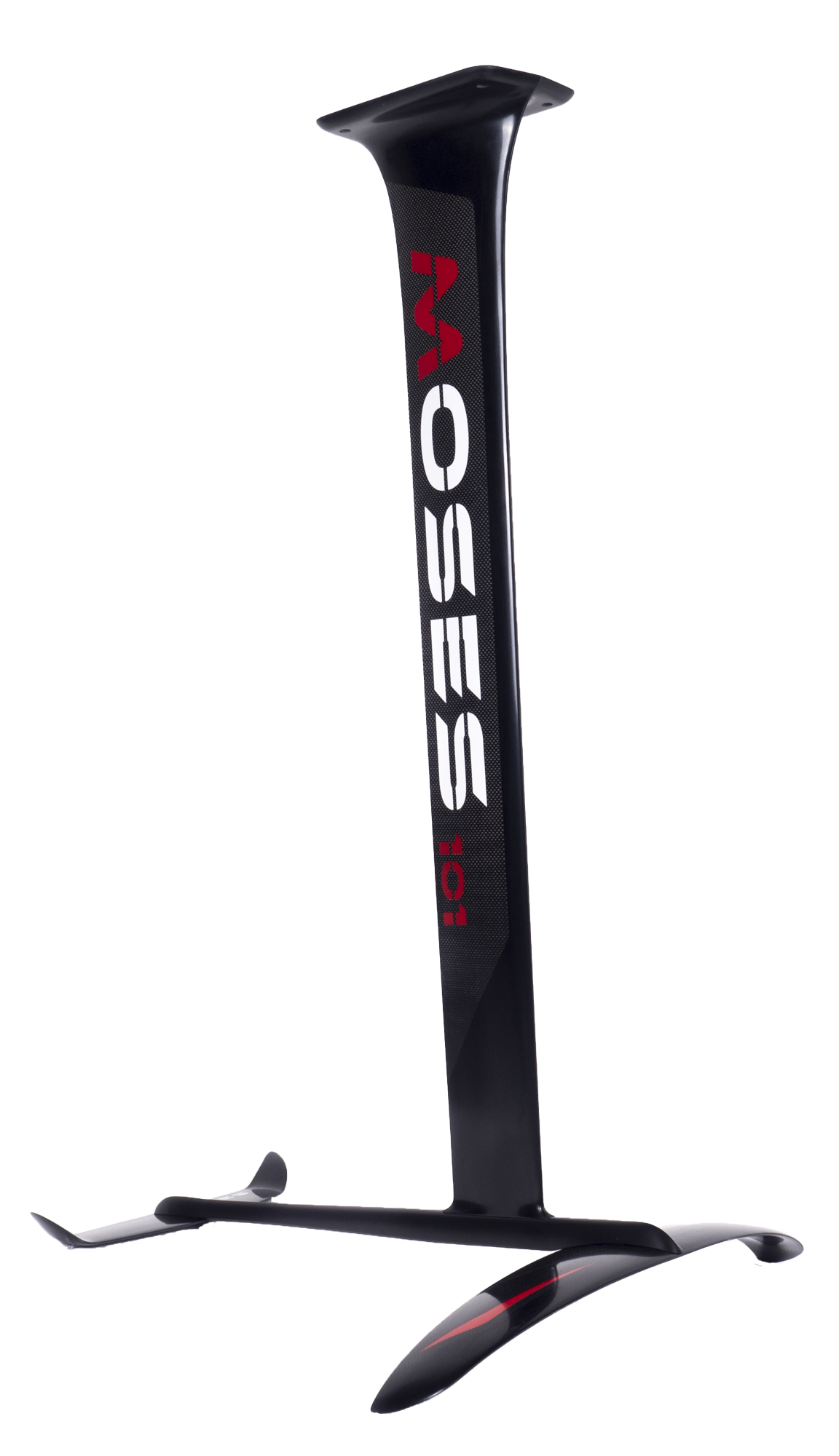

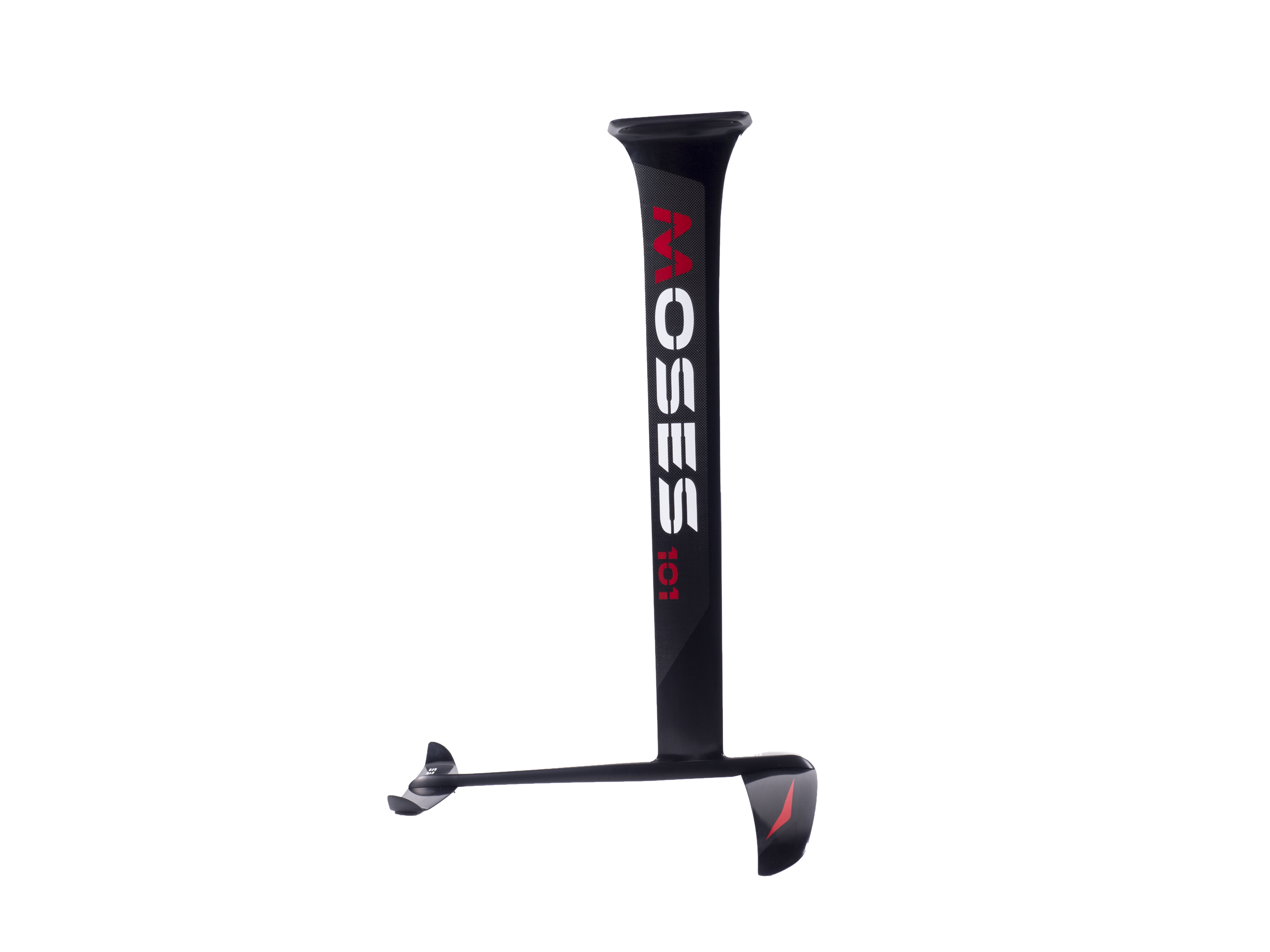

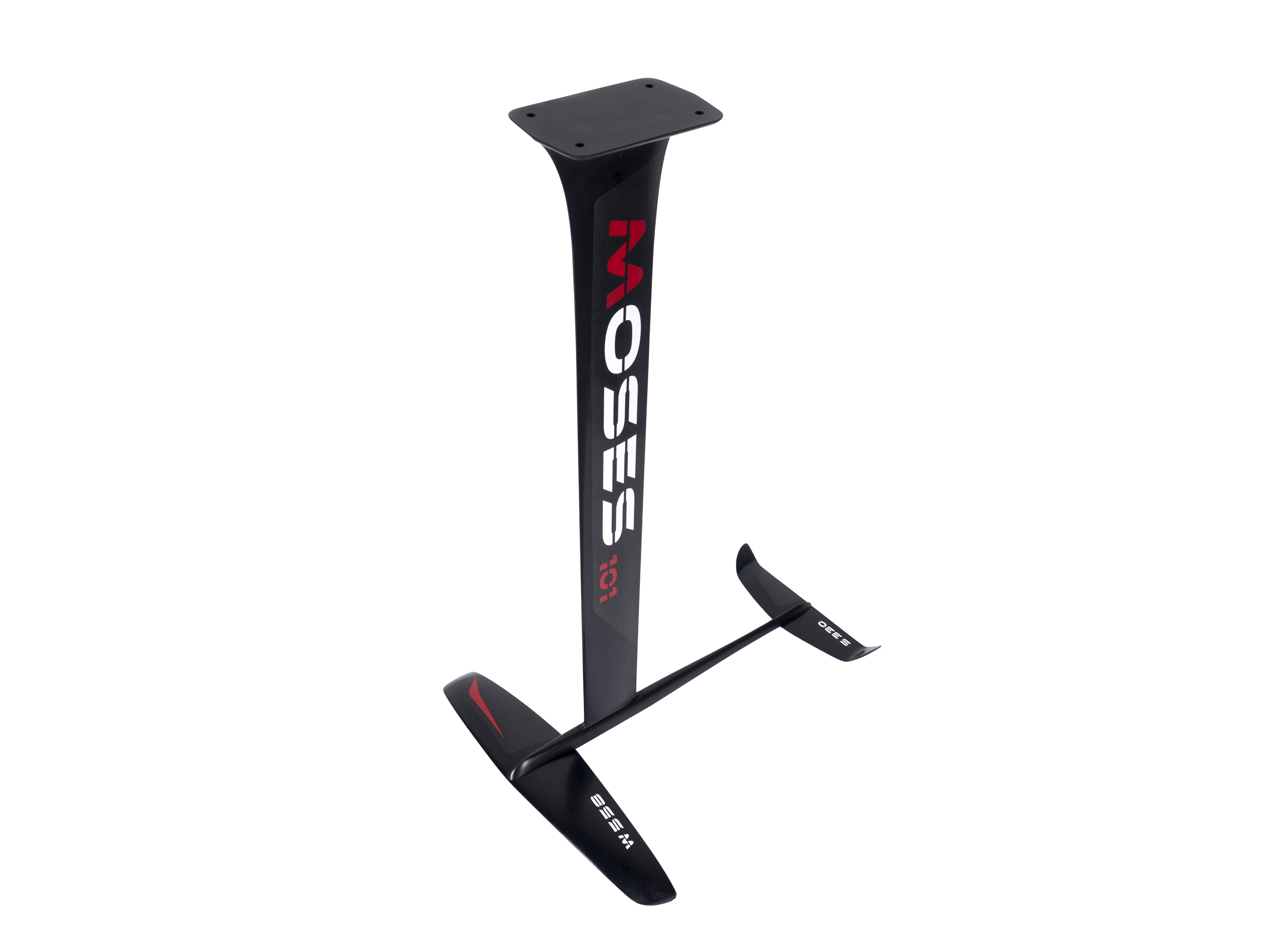

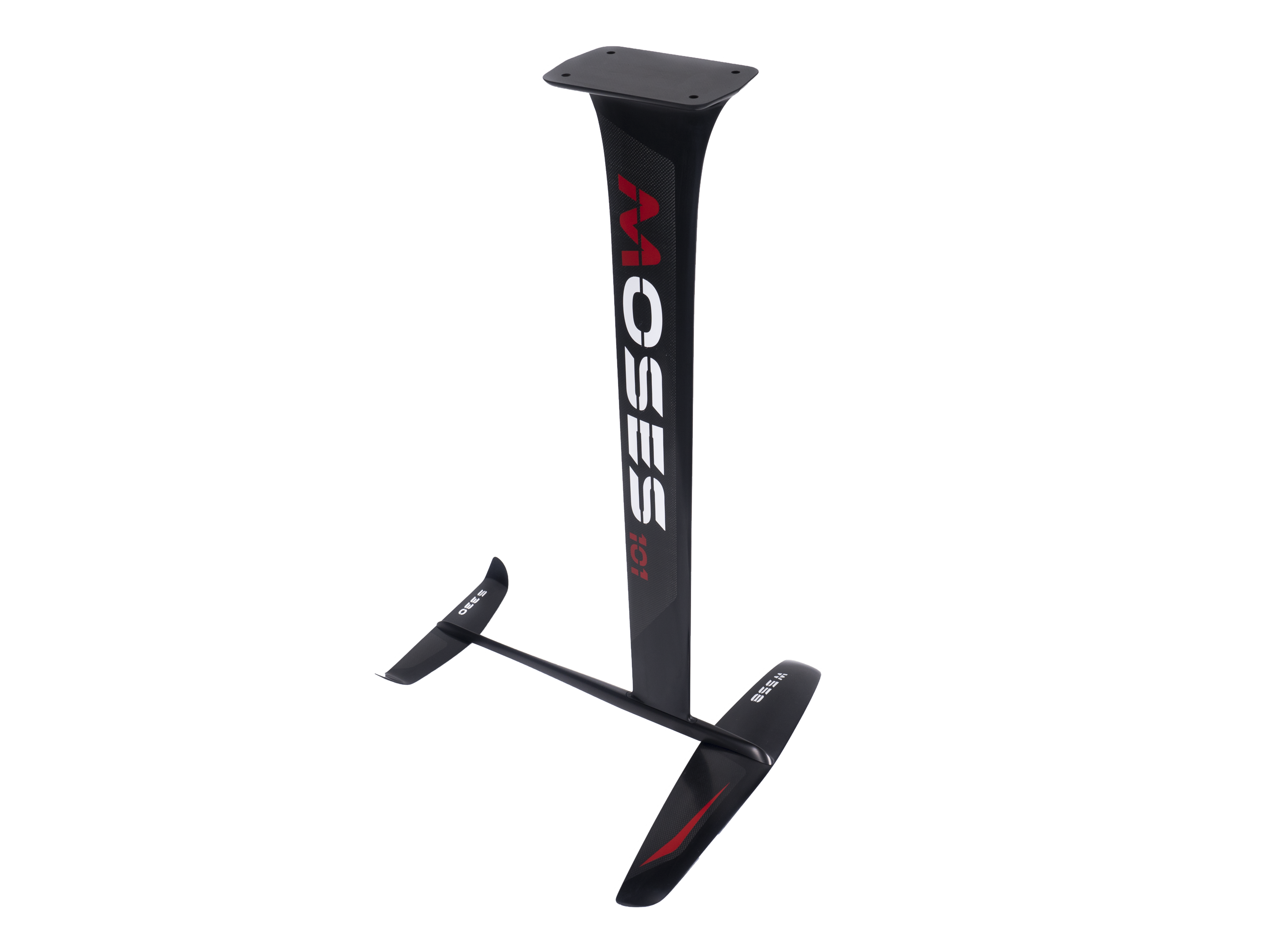

Kit 101 - 558 Carbon Kite Freeride

Kit 101 - 558 Carbon Kite Freeride K101558


The K101-558 is a thin profile wing with moderate arc, 6.3 aspect ratio wing and 12 cm cord.

Its speed is similar to a pure race foil but with a great manoeuvrability.

The K101-558 has a burning acceleration that will boost you higher than ever. This "made to jump" foil also cuts lines like a razor in the water. It has great control when overpowered.

This wing is a real carving machine that despite its performance is still accessible to riders of all level.


Low stock



Kit 101 - 558 Carbon Kite Freeride specs
LIFT SPEED 7/10
CONTROL 8/10
AGILITY 8/10
UPWIND 8/10
TOPSPEED 9/10
characteristics
Best For
Performance
Suggested For
Freeride
Level
Intermediate
Weight
<65 - 75 - 85 Kg
Water Surface
Choppy - Glassy
Wind
Medium

Pack content
1 x M101 - Carbon Plate Mast 101
1 x FK647 - Fuselage 647
1 x W558 - Carbon Front Wing 558
1 x S330 - Carbon Stabilizer 330
2 x Socket head cap Screw M6x20mm and washers
2 x Flat Head Screw torx M6x20mm and 1x Flat Head Screw torx M6x16mm
2 x Flat Head Screw torx M6x16mm
Grease, torx, hex tip
Instructions

DIMENSIONS & ADVANCE SPECS
Base Plate Joint
90x165mm

Mast Height
1010mm

Front Wing
558

Front Wing Span
558mm

Front Wing Root Chord
120mm

Front Wing Aspect Ratio
6,3

Front Wing Surface
557cm2

Stabilizer
330

Stabilizer Span
330mm

Stabilizer Root Chord
80mm

Stabilizer Aspect Ratio
4,3

Stabilizer Surface
217cm2

Board L4'6'' Full Carbon Surf

Board L5'0'' Full Carbon Surf

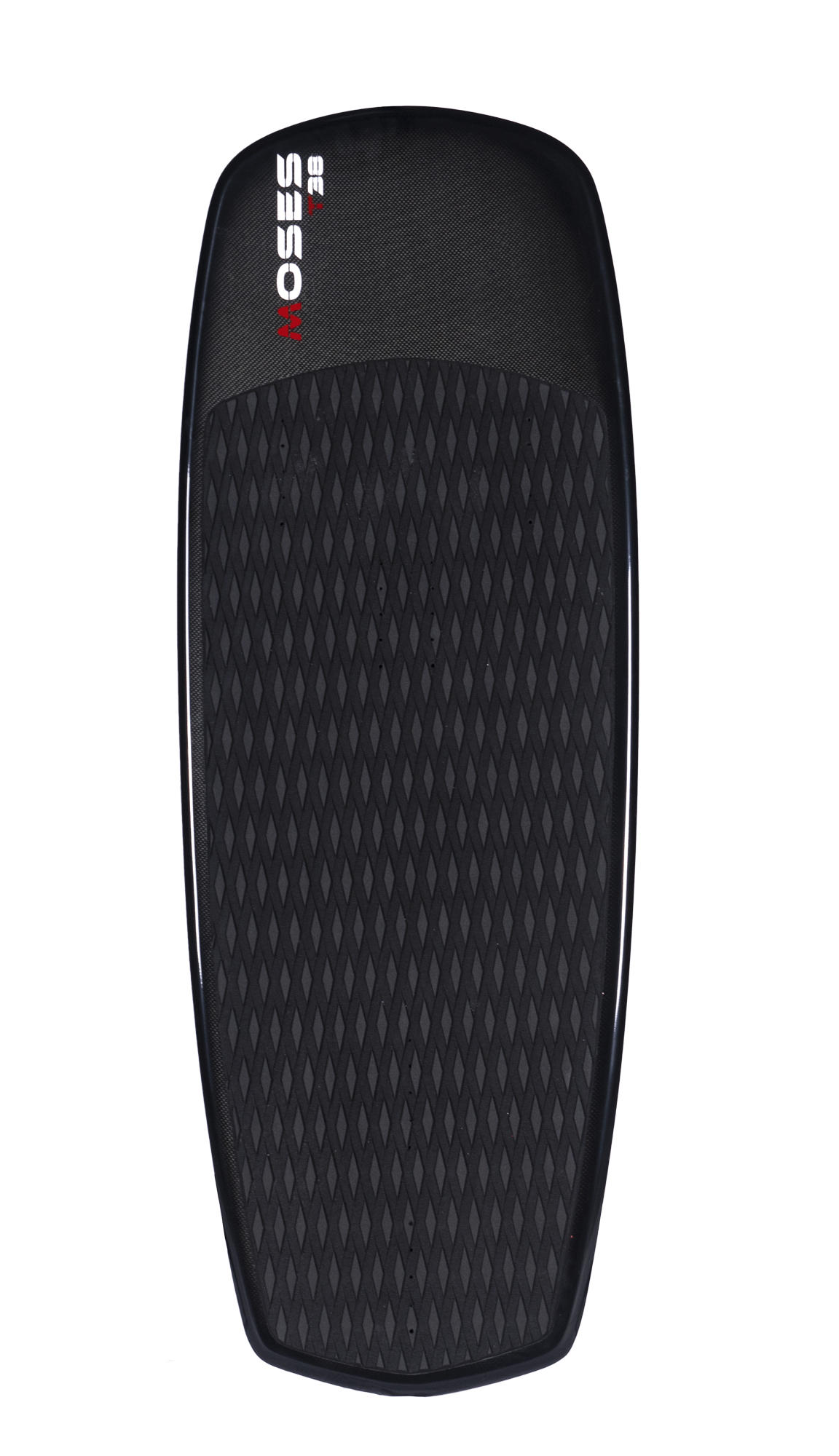

Board T38 Carbon Rail Kite
